GENERAL

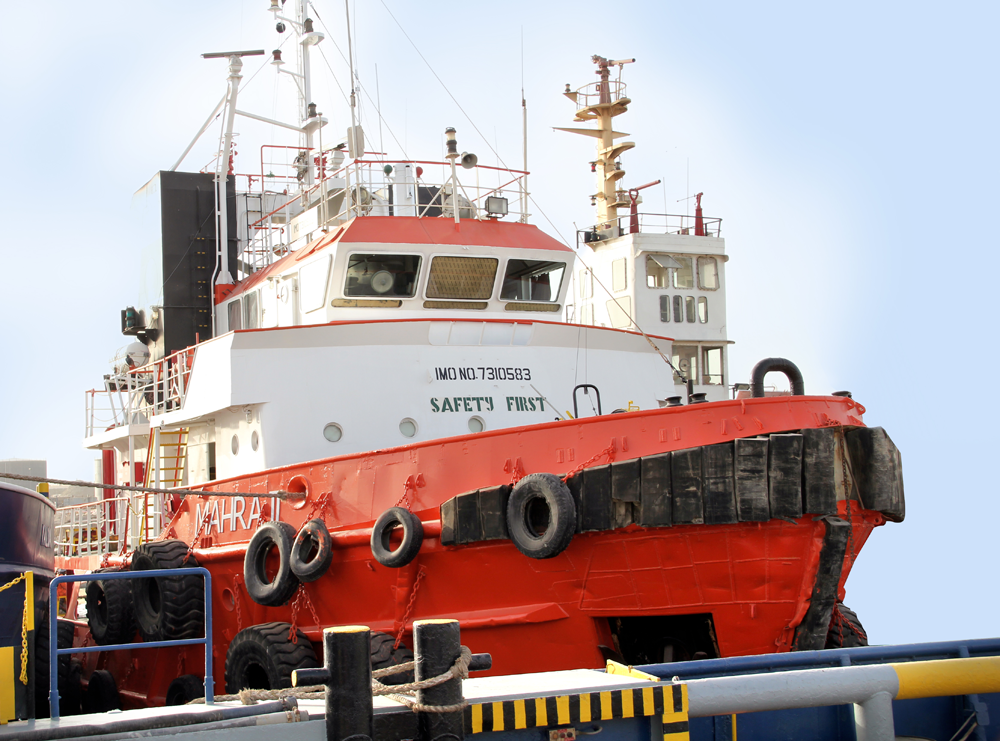

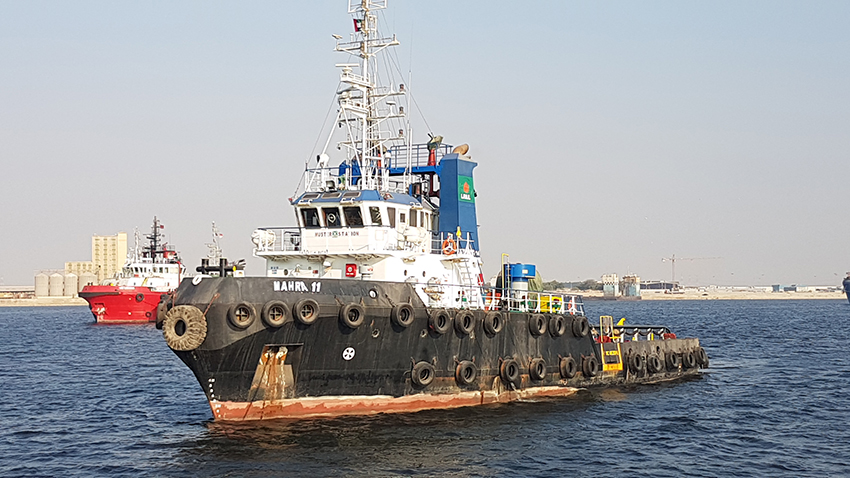

Ship Name MAHRA II
Ship Former Name STRATOS
Class RINA 100A1- E.R.E UNRESTRICTED SERVICES
IMO No 7310583
Flag UAE –Abu Dhabi
Builder SCHEEPSWERF BODEWES BERGUM, NETHERLANDS
Year Built 1973
Length overall 42.85 Mtrs
Beam (Moulded) 10.40 Mtrs
Depth (Moulded) 4.8 Mtrs
Summer Draft 4.30 Mtrs
Bollard Pull 53 Tons
Free speed 8 Knots
Gross tonnage 535 tons
Net tonnage 160 tons
Bunker diesel capacity 208 M3
Fresh water capacity 37 M3
Drill Water/ Ballast Water 256 M3
MAIN MACHINERY & EQUIPMENT
Main propulsion plant Manufacturer 2 x NOHAB Polar Diesel Engines
Type SF 116VS-11
Power 2x2400HP, Total – 4800 HP
Bow Thruster Hydraulic Drive – 350 HP
Electrical Generating Plant Type 3x DEWLCP GM Type 6/71 –162 KVA Perkins diesel – 60 KW
Steering Gear 2 Rudders – Electro Hydraulic 40 degree to port and starboard
Oily water separator system New unit fitted Oct 2004
Sewage system Fitted
Air Conditioning & Ventilation System Conventional – Central AC + Split units on wheelhouse
Firefighting Capacity Half - FIFI
TOWAGE EQUIPMENT
Tow Winch Aft Bedews Hydraulic – Towage and anchor handling
Brake capacity 100 Tons
Tow Wire Drum 1 – 1000m x 56mm diameter wire in Use
Drum 2 – 770m x 58mm diameter wire in Us
Maximum Pull No. 1 SWL 30 Metric Tons
No. 2 SWL 20 Metric Tons
Class Rina

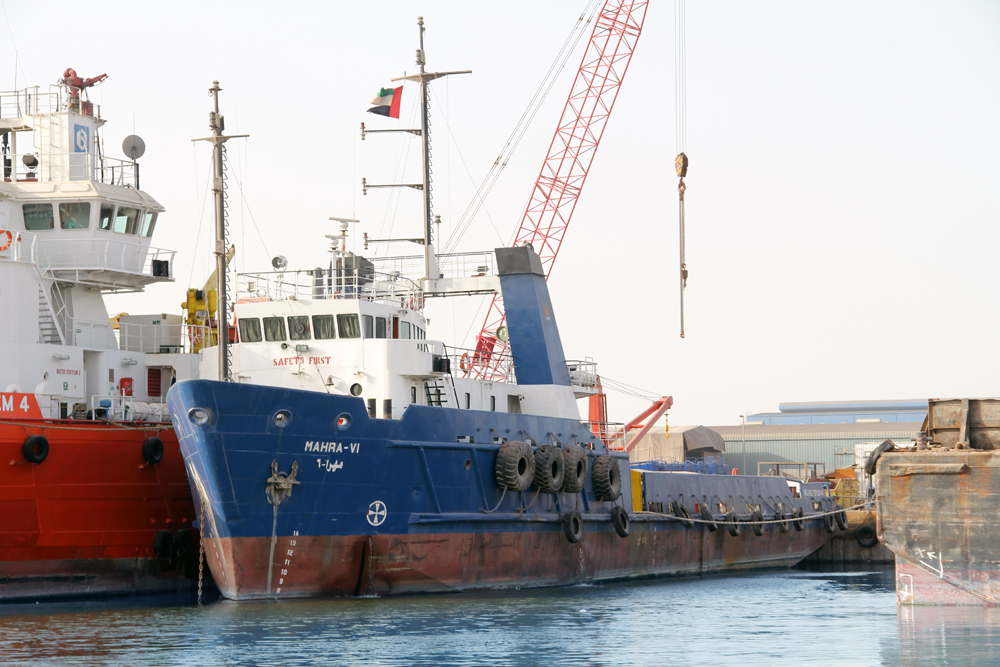

name of the vessel MAHRA VI EX NAME-CAMOGLIDUE
Date of build 1973 Yoguslavia
Type supply/ tug boat
port of rigstry abu dabi/ uae
classification Rina
imo number 7315844
Flag UAE
bollard pull 50 Ton
owners LIWA PETROLEUM MARKETING EST.
number of crew 9
trade route foreign going
cruising speed 9 KNOTS
gross tonnage 735 T
net tonnage 220 T
length overall 55.45 M
breath 11.46 M
summer draft 3.86 M
depth moulded 4.88 M
number of decks ONE
number of engine TWO
type of engine WICHMANN 6AXA
engine maker WICHMANN MOTORFABRIKK AS –RUBBESTACHNESET
engine output 2 X 1800
number of cylinders 2 X 6
diameter (mm) 300
length of stroke (mm) 450
year of engine built 1973
place of engine built NORWAY
builders TITO BEOGRAD TITO B
AAIC GR11
MMSI NO 616390000
Diesel Oil Consumption @ Full towage speed 6.00 ton per day.

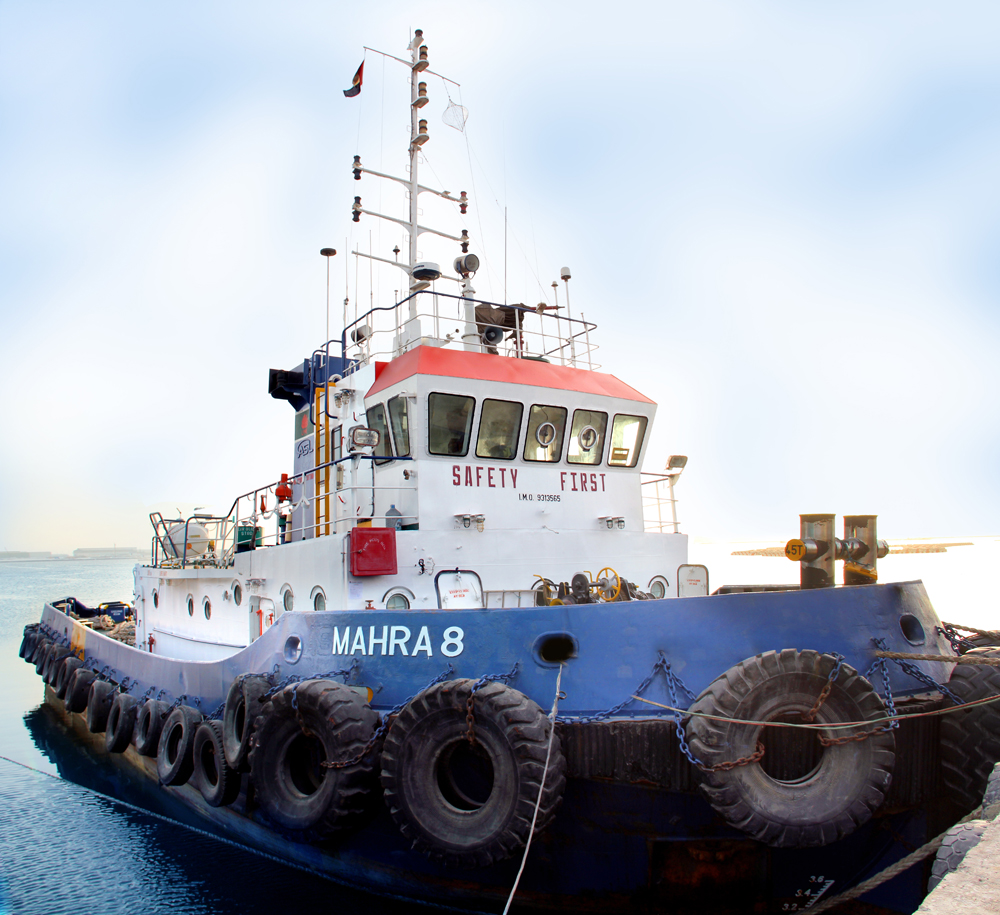

GENERAL
Owner Liwa Petroleum Marketing Est
Vessel's Name MAHRA VIII Tug Boat
Builder Guangzhou Panyu Lingshan yard
Year Built 2004
Type Tug Boat
Classification Rina
Flag UAE
Date of Next DD 2012
Dimensions
Length overall 30.00 m
Lengh B.P. 29.2 m
Beam (Mid) 9.00 m
Depth (Mid) 4.10 m
Draft-Design 3.40 m
GRT/NRT 290/87 T
DWT 305 tons
Machinery
Main Engine Cummins 2X 1600 HP
Gear Box Reduction gear
Propulsion Motor Ship/ fixed
Generator Cummins 2 X 100 KVA
Voltage 380 V
Speed & Oil Consumption
Speed 12 kn
Type of fuel M.D.O.
Deck Equipment
Windlass Hydraulic Type
Anchors 2 X480Kg stockless
Chain Cables 2X275m of22mm
Bollard Pull 40+/-
Towing Winch Single drum
Tugger Winch 2 speed
Radio & Navigational Equipments
Radar 1 Set
Echo Sounder 1 Set
GPS 1 Set
Search Lights 2 X 1000 w
GMDSS A1+A2+A3
Horn Elec.Air Horn
Clinometers 1 unit
Rudder Indicator 2 Set
Engine telegraph 1 Set
Inmarsat Mini M fax, data,Phone
Cargo Capacity
Clear Deck Area 150 m2
Deck Strength 5 tons per m2
Lube oil 6.4m³
Fuel Oil 200m³
Fresh water 100 m³
Ballast 46 m³
Accommodation
Senior Officer cabins 2
Number of other cabins 2
Number of crew cabins 4
Number of accommodation 2

REGISTRATION
Year Built 1982 – Moss Point Marine
Bollard Pull 41 MT
Ex-Name Team Rima
Class RINA
Flag UAE
Owners Liwa Petroleum Marketing Est.
DIMENSIONS
Length Overall 64.08 M
Breadth Moulded 12.80 M
Depth Moulded 4.60 M
Draft Loaded 3.75 M
Deadweight 1,284.14 m/t
Registered Tonnage Gross 975 T/ Net 292 T
Displacement 2,462.79 m/t
Light Ship 1178.65 m/t
Main Deck L = 41 M / W = 96 M
MACHINERY
Main Engines Main Engines
Maximum BHP BHP 3900 cont. @ 900 RPM
Reduction Gear Lufkin 3.0:1
Auxiliaries Generators 2 x GM 8V71/125kW Delco
Propellers 2 x Fixed Pitch Propeller
Diesel Hydraulic Power Pack GM 16V149T1
Bow Thruster Hyd Tunnel 300 HP – 6 tons thrust
Stern Thruster Hyd Tunnel 300 HP – 6 tons thrust
Oily Water Separator
CAPACITIES
Fuel Oil 76,331 US Gals…289 cu.m.
Fresh Water 11,358 US Gals…43 cu.m.
Drill Water 198,634 US Gals…752 cu.m.
Bulk Tanks (8 tanks) 8 x 1062.5 cu.ft. = 8,500cu.ft./241 cu.m.
Liquid Tanks (6 tanks) 92,749………….351 cu.m.
Refrigerator/Freezer Walk-in 300 cu.ft./18.3 cu.m. each
Clear Deck Area L=135 ft. x B = 32 ft. = 4320 sq.ft.
Deck Cargo Capacity 703 Tonnes, 5T/sq.m.
COMMUNICATIONS
SSB I-COM, Model IC-M700
SART 2 nos.
Satcom Yes
GMDSS JRC
VHF (2) JHS Model 32-A / I-COM
Model IC-M59
Emergency
Telegraph Henschel
Mobile Etisalat, U.A.E.
NAVIGATION EQUIPMENT
Magnetic Compass Ritchie-SP6
Gyro Compass Sperry Mark 37
Gyro Repeators 2 x Sperry
Auto Pilot Robertson Simrad Ap9 MK3
Radars (2) JRC Model JMA-3807-6/ Simrad Anritsu Model AR-722UA
Navtex Nav 5 GMDSS
Echosounder Sitex CVS 106 MK II
Satellite Navigator Furuno
GPS
Weather Fax Furuno DFAX-208A
Wind Speed Indicator Thomas Walker WG1
TOWING / ANCHOR HANDLING / MOORING
Winch Double Drum Waterfall SMATCO 66
  DAW-200, single line pull, 300,000 lbs (136.4 tons)
Tow Cable 3,000 ft. – dia. 2 ¼ in.
Tugger Winch 1 x 6 Tons
Windlass 25 HP dual gypsy electric
Anchors 2 x Danforth – 3000 lbs each side
Chain 1.125 in. Dia. X 330m each side
Stern Roller L-8 ft., Dia. = 8 ft.
PERFORMANCE
Speed Average = 12 knots
Fuel Consumption Approx. 12 m/t per day
TRANSFER RATES
Fuel 102 cu.m./hr. @ 60m head
Water 102 cu.m./hr. @ 60m head
Bulk 3 x Quincy QSLP 100 screw compressors
Liquid Mud 500 cu.m./hr. @ 46m head
Fuel Meter 1 x Goulds 2405 transfer pump
  102 cu.m./hr. @ 60m head
SAFETY & FIREFIGHTING
Liferafts 2 x 20 = 40 persons
Fire Extingishers 15/CO2 – 8 Foam – 7 D/P
Fire Pump & Monitor (1) 1 x Elkhart 350 cu.m./hr.
ACCOMMODATION (Total = 18 beds)
Crew (8) 2 cabin x 1 berth = 2
  1 cabin x 6 berth = 6
  1 cabin x 6 berth = 6
  1 cabin x 2 berth = 2
Catering & Passenger (8) 1 cabin x 2 berth = 2
  1 cabin x 4 berth = 4

Ship owner LIWA PETROLEUM MARKETING EST
builders Moriol Engineering S.B. Pte Ltd.,Singapore

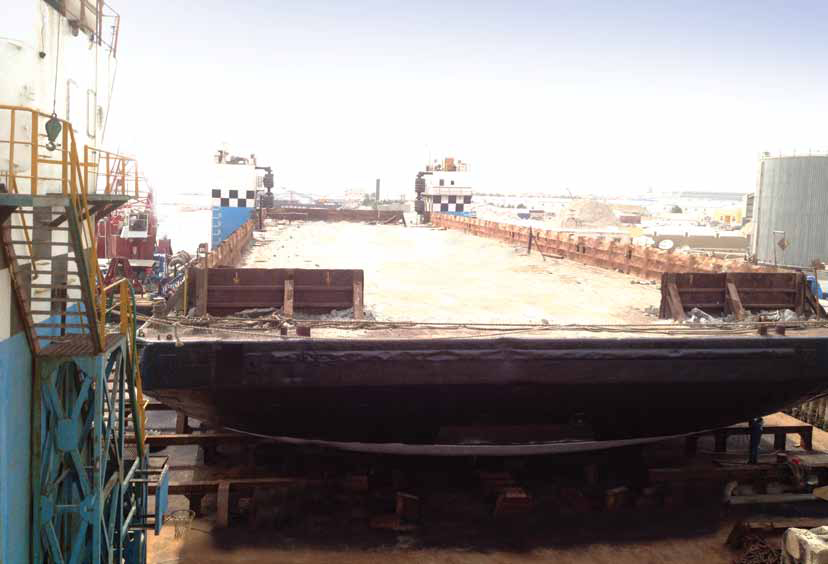

Ship Name ALI B10 Ex. Safa 240
Date Of Completion 1981
Class RINA
flag UAE
Gross Tonnage 2147 Ton
Nett Tonnage 644 Ton
Length Overall 70.22 Meter
Register Breath 21.94 Meter
Register Depth 5.18 Meter
Dead Weight 4,800 Tons
Draft (Summer Free Board) 4.2 Meter

General
Ship Owner Liwa Petroleum Marketing Est.
Builders PT NANINDAH MUTIARA SHIPYARD INDONESIA

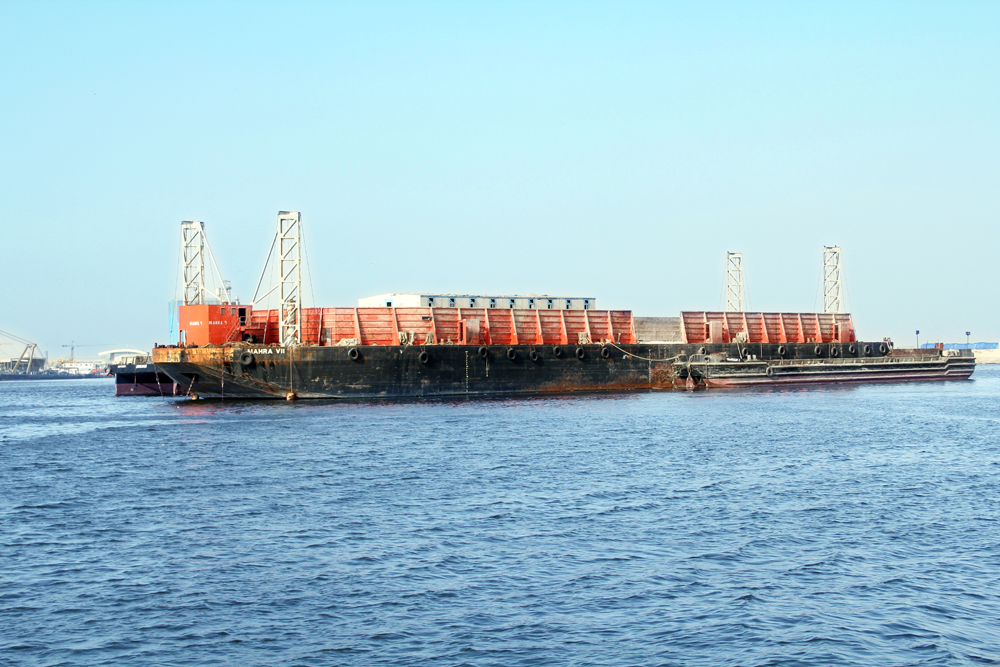

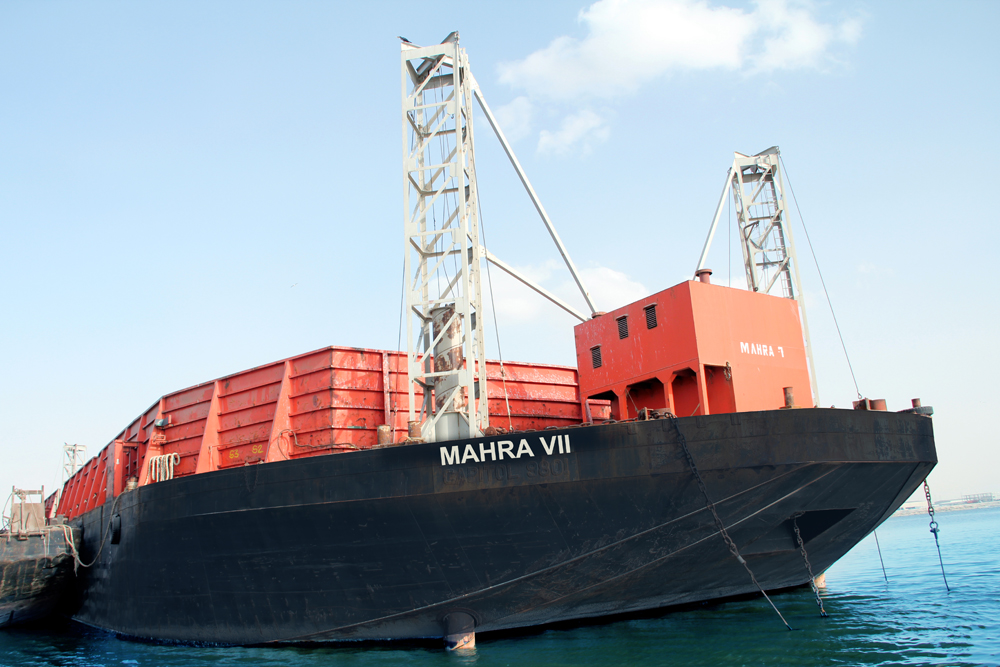

Ship name Mahra VII
Date of Completion 2004
Class Rina
Flag UAE
Gross Tonnage 4190 Ton
Nett Tonnage 1257 Ton
Length Overall 96.56 meter
Register Length 96.56 meter
Register Breath 27.43 meter
Register Depth 6.1 meter
Dead Weight 10,000 T
Draft 4.75m
Max Deck Cargo 15 Ton/ M2
Side Wall 12 Feet

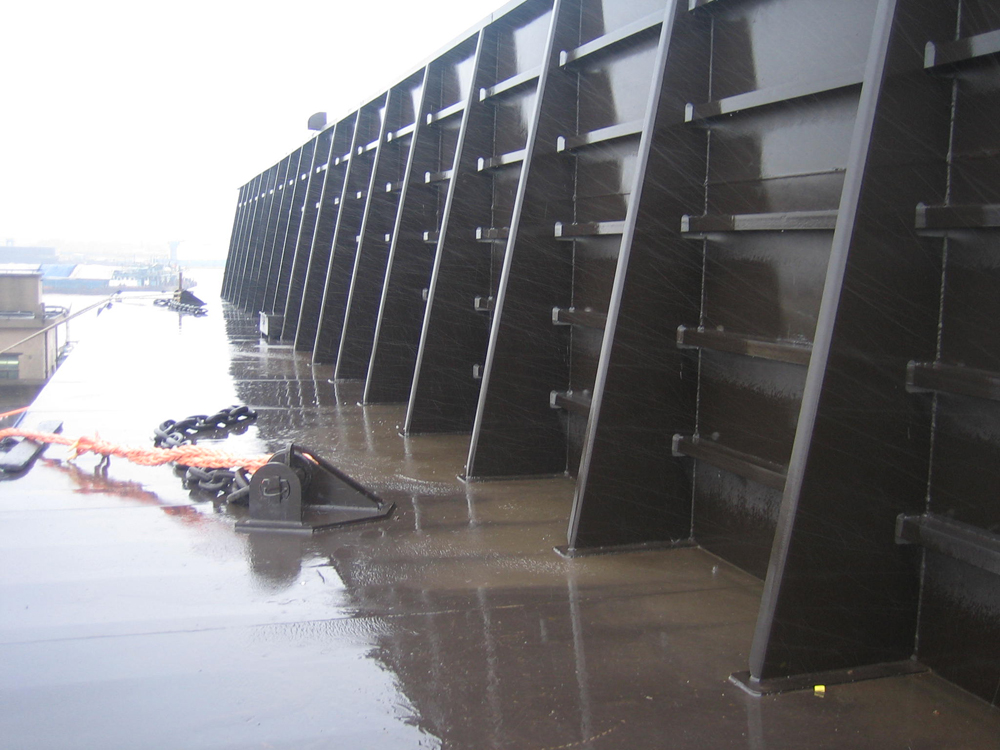

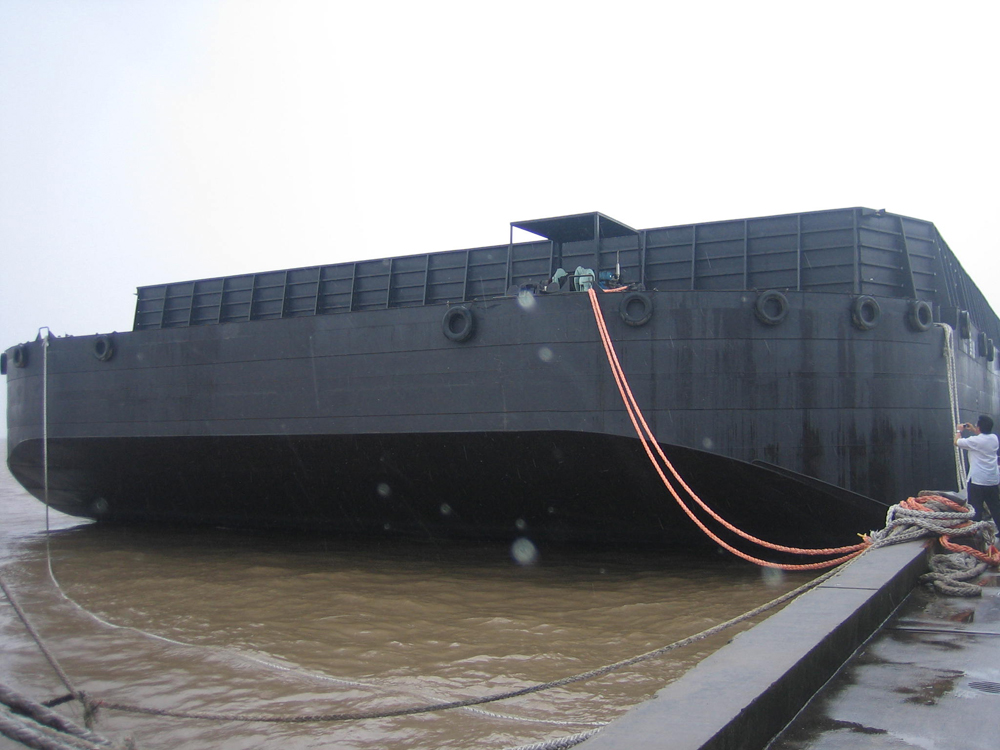

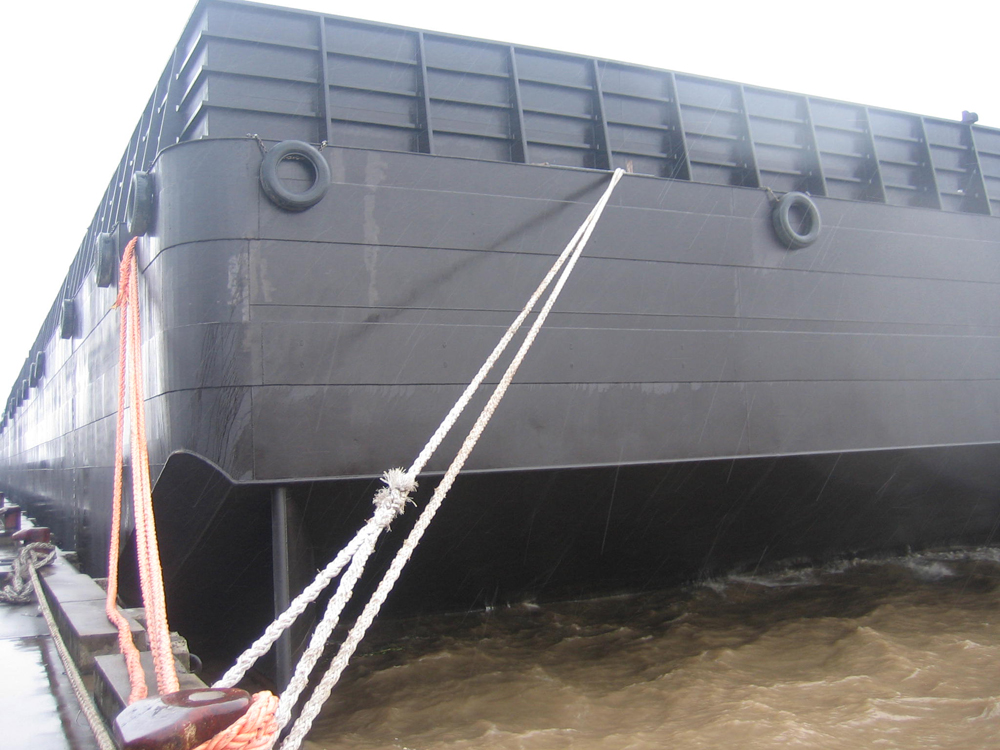

FLAT TOP BARGE – 25,000 DWT
Owner Liwa Petroleum Marketing Est.
Builders Nanjing Lansheng Shipyard
Ship Name MAHRA IX
Principal Particulars
Length (O.A.) 128.00m
Breadth Moulded 40.00m
Depth Moulded 8.80m
Class RINA
Flag UAE
Port of Registry Abu Dhabi
Trading Area unrestricted
GRT 12421 T
NT 3726 T
DWT 25,000 Tons
Deck Strength 15T / M2
Plating
Deck Plate 20.0mm
Bottom Plate 14.0mm
Side Plate 14.0mm
Longitudinals/Transverse Bulkhead 10.0mm
Longitudinals
Deck Longitudinals 150mm x 90mm x 9mm IA
Bottom Longitudinals 150mm x 90mm x 12mm IA
Side Longitudinals 150mm x 90mm x 9mm IA /125mm x 90mm x 7mm IA
Bulkhead Stiffener 125mm x 75mm x 7mm IA
Transverse
Deck Transverse 500x10 + 150 FLG
Bottom Transverse 500x10 + 150 FLG
Side Transverse 560x10 + 150 FLG
Long. Bulkhead Transverse 460x10 + 150 FLG
Stanchions
Vertical W10 x 10 x 49 kg/m
Diagonals 150 x 150 12 OA


VESSEL DESCRIPTION
SHIP OWNER LIWA PETROLEUM MARKETING EST.
BUILDERS SHIMOTO SHIPBUILDERS, JAPAN

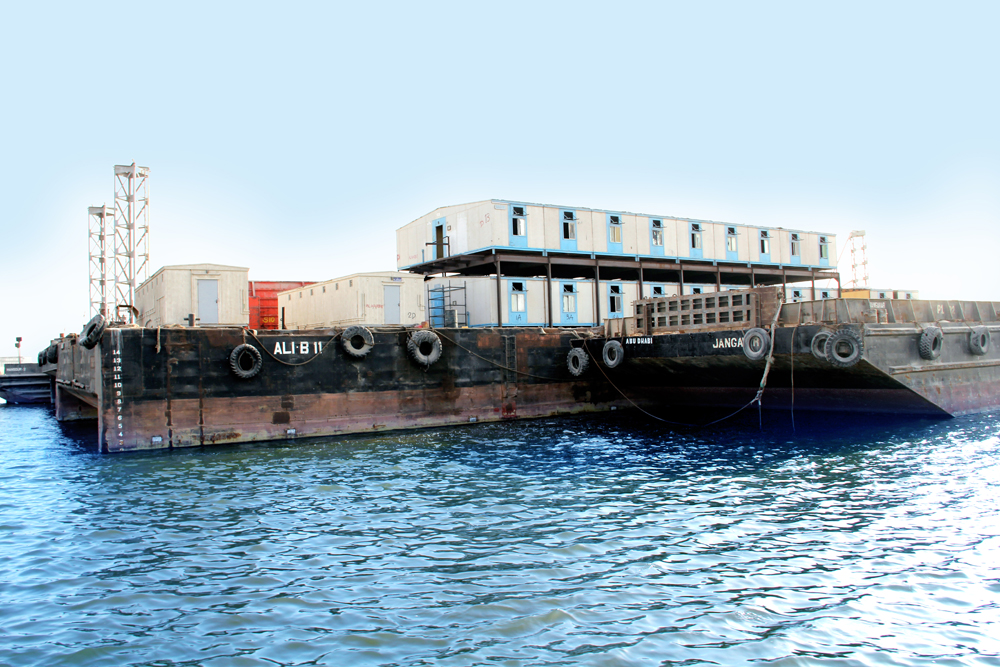

SHIP NAME ALI B11 ex. SAFA 242
DATE OF COMPLETION 1974
CLASS Bureau Veritas
FLAG UAE
GROSS TONNAGE 2160 Ton
NETT TONNAGE 648 Ton
LENGTH OVERALL 70.23 meter
REGISTER BREATH 21.95 meter
REGISTER DEPTH 5.26 meter

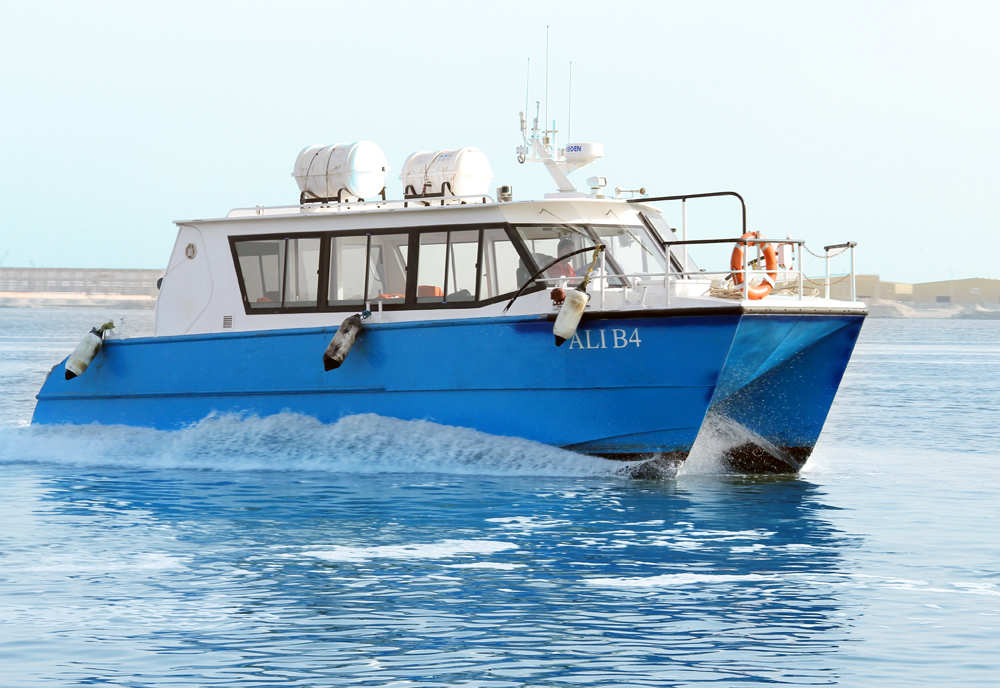

VESSEL DESCRIPTION
Type of ship Crew Boat
Ship owner Liwa Petroleum Marketing Establishment
Official number 6652
Flag U.A.E.
Builders Ironline Ships and Boats Company
Date keel laid 2010
Principle Dimensions
Length Over All 10.00 m
Breadth (Inc Fenders) 3.50 m
Depth 1.18 m
Summer load draught 0.60 m above BL
Displacement 8.647 tonnes (S.G. 1.025 t / cu.m)
Lightship 6.00 tonnes
Deadweight 2.647 tonnes
Gross tonnage 14.61 ton
Hull
Material Aluminum
No. of watertight bhd 3
No. of continuous deck 1
Speed
Cruising 25.00 knots
Max. Speed 35.00 knots
Machineries
Generator ONAN 6.5 MDKUBL, 6.5 kW, 1 PH, 50/60 Hz, 120 V, 3600 rpm Maker : CUMMINS MARINE
Air Conditioning System CLIMMA AIR CONDITIONING x 2
Air Conditioning Cooling Pump CLIMMA x 2
Fresh water Pump JABSCO 25 psi Automatic water system pump Model: 31600-0292
Sewage pump JABSCO Macerator pump
Main Engine
Model 300 hp VERADO
Type Outboard Engine, 4 stroke
Power Combined 445 kW
Fuel Type Gasoline
Manufacturer MERCURY MARINE, U.S.A.
Manufacture Year 2009
Navigational/Safety Equipment & Other Accessories
Radar KODEN, MDC - 721, 24 Miles x 1
GPS + Chart plotter + Depth sounder SAMYUNG, NAVIS 800 FS x 1
VHF VHF MARINE STR-6000 A x 1
Magnetic Compass NAVTECH-155 x 1
Automatic Identification System AMEC CAMINO-201 Class B- AIS
Inflatable Liferaft 15 P x 2
SART 1 unit ( Near exit forward door)
Medical Locker White box x 1
Life bouy with light 2 units ( fore and aft)
Life Jacket 22 adults + 2 Minors
Fire Extinguisher 4.5 kgs ABC Dry powder x 1
Fire Locker Red box x 1
Fire Axe 1 unit
Fire plan tube 1 unit (aft)
Tank Capacities
Gasoline Fuel 350.00 L x 4
Diesel Fuel 100.00 L
Fresh water 40.00 L
Passenger Accommodation (Fully Air-conditioned)
Complement 16 Pax + 1 Pilot + 2 Pax outside + 1 unit Toilet(aft stbd)

VESSEL DESCRIPTION
Date updated 20/10/2012

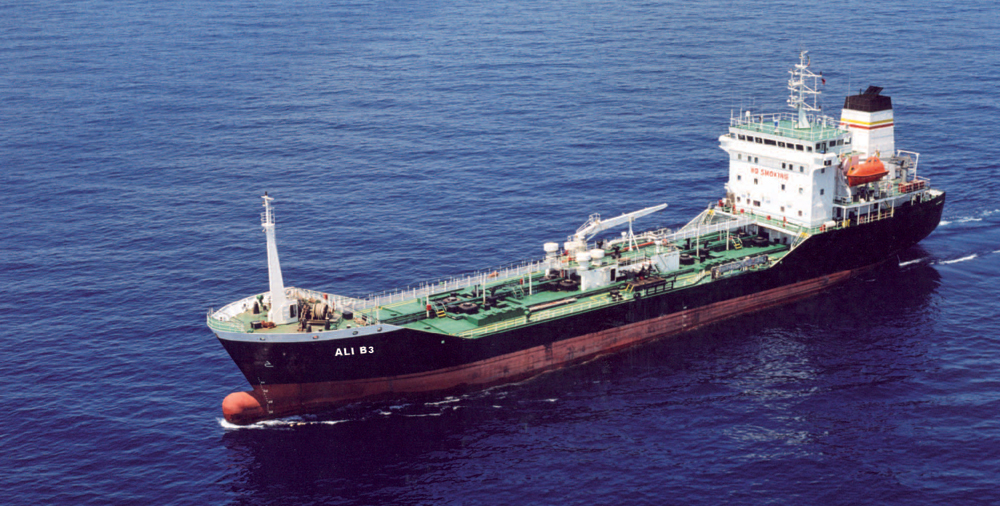

Vessel's name ALI B3
IMO number 9144184
Vessel's previous name San Gorgio
Builder (where built) SOUTHERN OCEAN SHIPBUILDING PTE LTD
Flag U.A.E.
Year Built 3/31/1997
Port of Registry Abu Dhabi
Call Sign A6E2671
Type of Vessel Oil/ Bitumen Tanker
Type of Hull Double Hull
Class Society R.I.N.A
Owner Liwa Petroleum Marketing EST.
DIMENSIONS
Length Over All (LOA) 97 Meters
Length Between Perpendiculars (LBP) 91.35 Meters
Extreme Breadth (Beam) 17 Meters
Moulded Depth 8.20 Meters
Air Draft

Full Mast Collapsed Mast
Lightshift
29.8 Meters Meters
Normal Ballast
29.2 Meters Meters
At Loaded Summer Deadweight
26.2 Meters Meters
TONNAGES
Net Tonnage 1179
Gross Tonnage/ Reduced Gross Tonnage (if Applicable) 3932
CARGO MANIFOLDS
Does vessel comply with the latest edition of OCIMF Recommendations for Oil Manifolds and Associated Equipment YES
What is the number cargo connections per side 2
What is the size of the cargo connections 250 Milimeters
What is the material of the manifold Carbon Steel
FUEL CONSUMPTION
Main Engine Fuel Consumption
Power and RPM (present running) 3,345 BHP at 700 rpm
Fuel-Type HFO 180 Ct
Consumption 10 MT per 24 Hrs.
During maneavering MGO is used and consumption is 10.5 MT/day
Diesel Generators Fuel Consumption
Sea Load 300 KW
Fuel Type MGO
Consumption 0.85 MT/ day ( at sea)
  1.68 MT/day (loading)
  3.36 MT/day (discharging)
BOILER FUEL CONSUMPTION
Fuel Type MGO
Boiler no. 1 0718 MT/ Day
Boiler no. 2 0.694 MT/Day
If boiler run on High Stage (cold country) 3 MT/Day
Main Engine Wartsila VASA GR32E
PUMPING SYSTEMS
Pumps
No. Type Capacity
Cargo
2 Screw 500 Cu.M/Hour
Stripping
    Cu.M/Hour
Eductors
    Cu.M/Hour
LIFTING EQUIPMENT
Derrick/Crane description(Number,SWL and location) NO. 2 CRANES - 2tons & 1.5 tons
ENGINE ROOM
What type of fuel is used for main propulsion? HFO 380
What type of fuel is used in the generating plant? HFO 360/ MDO
LOADLINE INFORMATION
Loadline Freeboard Draft Deadweight Displacement
Summer 2.4 Meters 5.8 Meters 4662 Metric Tons 6994 Metric Tons
Winter Meters Meters Metric Tons Metric Tons
Tropical Meters Meters Metric Tons Metric Tons
Lightship 6 Meters 2.2 Meters   2332 Metric Tons
Normal Ballast Condition 4.2 Meters 3.3 Meters 1889 Metric Tons 4222 Metric Tons

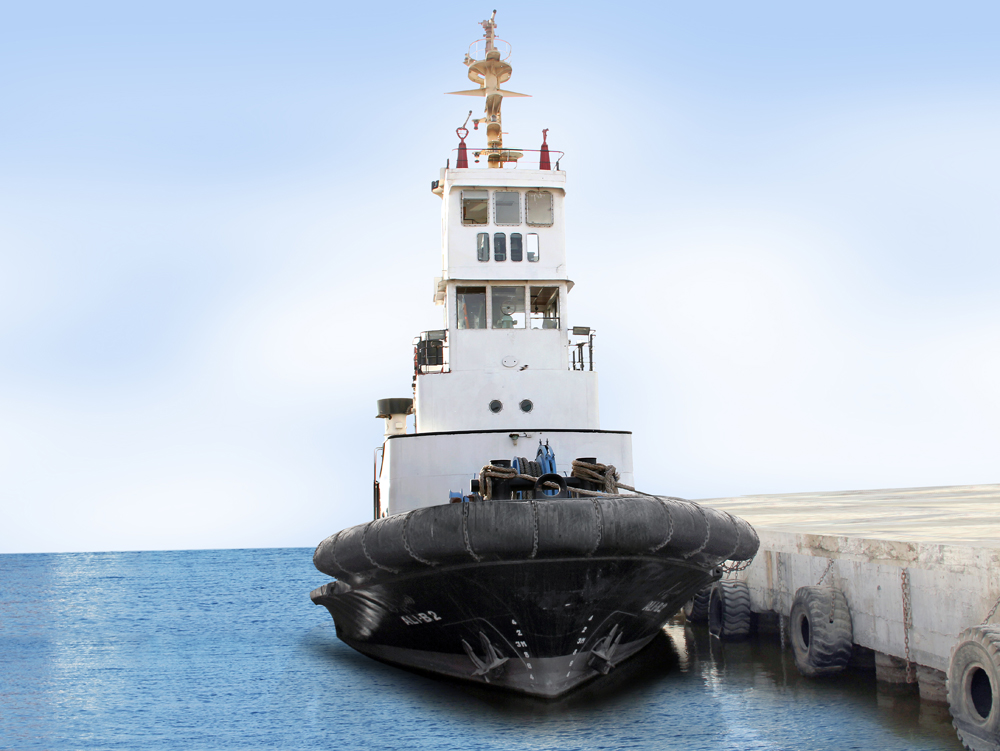

VESSEL DESCRIPTION
Ship Owner Liwa Petroleum Marketing Est.
Builders Sanyo Shipyard Co. Japan
Ship Name ALI B2 (Ex. Heeli)
Date Of Completion 1976
Class Rina
Flag U.A.E.
Imo No. 7530664
Gross Tonnage 211 Ton
Nett Tonnage 50.62 Ton
Length Overall 31 Meter
Register Breath 8.8 Meter
Register Depth 3 Meter
Draft (Summer Free Board) 312 Mm
Engine Type Nigata, Japan
No. Of Engine 2 X 1200 (Twin Azimuth Proppelers)2400 Hp
Est. Speed Of Ship 12 Knots
No. Of Cylinders 6 (Cyl. Dia 250Mm)
Bollard Pull 35 Tons

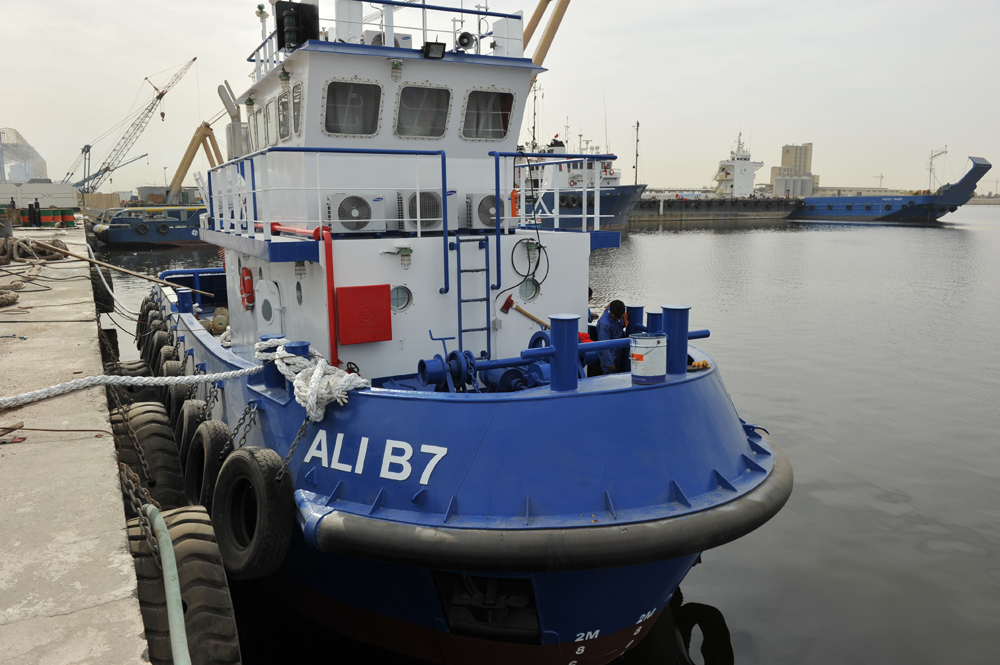

VESSEL DESCRIPTION
Ship Owner Liwa Petroleum Marketing Est.
Ship Name ALI B7
Year of Completion 2012
Gross Tonnage 93.00 Tons
Net Tonnage 80 Tons
Length Overall 19.00 Meter
Register Breath 5.50 Meter
Register Depth 2.80 Meter
Register Draught 2.00 Meter
GENERATOR
Generator Leroy Somer Alternateurs
Power Generator 2 X 35 Kva X 3 Ph X 50 Hz
Engine Model Tianjin Lovol Engine 1004J14
Rated Power 40 Kw @ 52 Hz
Rated Speed 1500 Rpm
Fuel Consumption 6 Ltr./Hr.
ENGINES
Model Cummins Kta19-M
Horsepower 2 X 700 HP @ 1900 Rpm
Fuel Consupmtion 2 X 96.8 Ltr./ Hr @ 1900 Rpm
TRANSMISSION
Model ZF W650
Transmission Ratio 3.605:1
PROPELLER
Propeller Type 2 X 4 Blades Kaplan Type Propeller In Nozzels
Propeller Materials Manganese Bronze
Diameter X Pitch 1150 Mm X 890 Mm
WINCH
Model Double Gypsy Anchor Winch
Length Of Chain 17.5 Mm X 5 Shakels
Rated Power 13.02 Kw
ANCHOR
Weight 2 X 180 Kgs

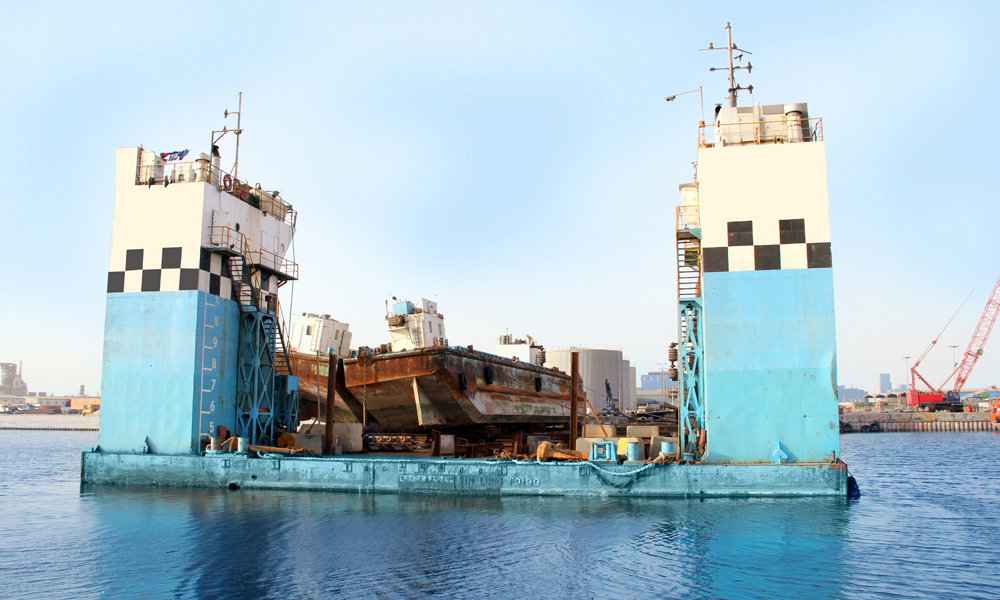

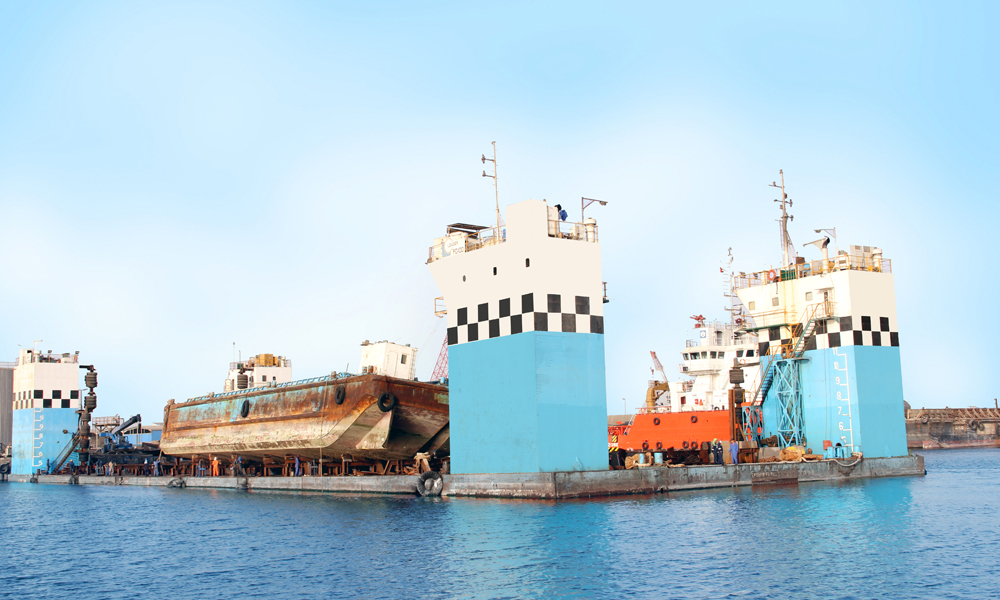

VESSEL PARTICULARS
Ex. Name FD100
Type of Vessel Floating Dock
Call Sign ASAW
Port of Registry Abu Dhabi, UAE
Official No. 5772
Year Built 1999 China
Class RINA
Dimensions 99.56 M x 32.2 M X 4.0 M
Gross Tonnage 4, 103 t
Net Tonnage 1,230 T
Draft Extreme/ Light 11.5 m / 0.5 m
Lifting Capacity 8,250 T
Anchoring System 4 x 7 t Anchors with central controlled hydraulic winches
Generator 2-4 Cyl. Wartila Diesel Model 414TS 575BHP @ 720RPM Driven alternator ar 450V 603A 60Hz 470KVA
Fuel Tank Capacity About 50 Tons
Fresh Water Capacity About 50 Tons
Capacity of Ballast About 40, 000 tons
